Coffee bean packaging machine, Saudi Arabian coffee bean vacuum packaging machine

This automatic coffee bean packaging machine is designed for high-speed, precise filling and sealing of whole or ground coffee beans into various bag types, including pillow bags, stand-up pouches, and quad-seal bags. It integrates volumetric or weigher feeding systems (e.g., multi-head weigher or cup filler) to ensure accurate dose control, preserving the aroma and freshness of the coffee.

Key Features:

• High accuracy: Equipped with a precision weighing or measuring system to minimize product giveaway.

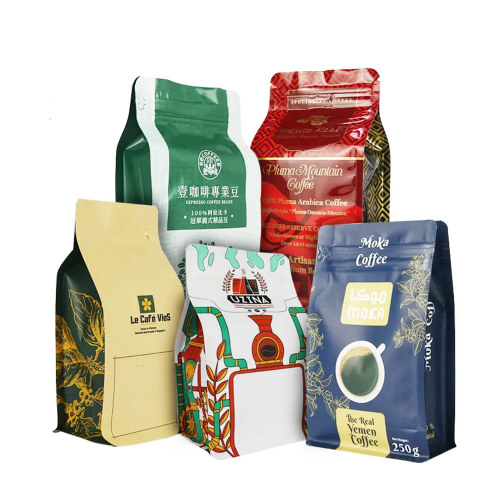

• Versatile bagging options: Supports pre-made bags or form-fill-seal (FFS) for pillow, gusseted, or stand-up pouches with zipper or degassing valve.

• Gas flushing capability: Optional nitrogen flushing extends shelf life by removing oxygen.

• Easy operation: PLC control with HMI touchscreen for quick changeover between different bag sizes and coffee varieties.

• Durable construction: Food-grade stainless steel (SUS304) for corrosion resistance and compliance with sanitary standards.

Applications:
Ideal for coffee roasteries, coffee shops, and industrial packaging lines – suitable for whole beans, ground coffee, espresso blends, and single-origin coffee.

Optional add-ons:
Degassing valve applicator, date coder, bag opening check sensor, automatic bag feeder.

C500Z COFFEE PACKING MACHINE

VACUUM PACKAGING MACHINE SERIES

Vacuum packaging machine series

Type: Tea & Coffee Bag Packing Machine Series

Product model: C500Z

Product name: Vacuum Packaging Machine

Purpose: Granular or broken tea, coffee etc

Feature:

1.The PID temperature regulator is used to control the sealing temperature, whichcan ensure the smooth sealing and improve the yield.

2.Adopt PLC to control the movement of the whole machine, touch screenoperation interface.

3. lt adopts double shunt packaging to improve the efficiency of the whole machine.4. lt can count and pack the inner bag in a triangular bag, or combine the large particles into one bag for packing after counting.

5. it is equipped with outer bag coding equipment.(At the same time, print theproduction date and production batch number).

6. it has a bottom leveling and compacting vibration mechanism to ensure that the

bottom is compacted before packaging.

Filling range: 1-1000g

Packing speed: 9-13 bags/minute

Bag size: L180-350mm W70-180mm

Air supply : 0.5~0.6Mpa

Air consumption: 0.3m3/min

Power: 220V,50HZ,3.7KW

Weight: 780KG

Dimension : L1800mmxW1400mmx1900mm (Not include electronic weigher)
