C25 Tagging Machine

C25 Tag Making Machine

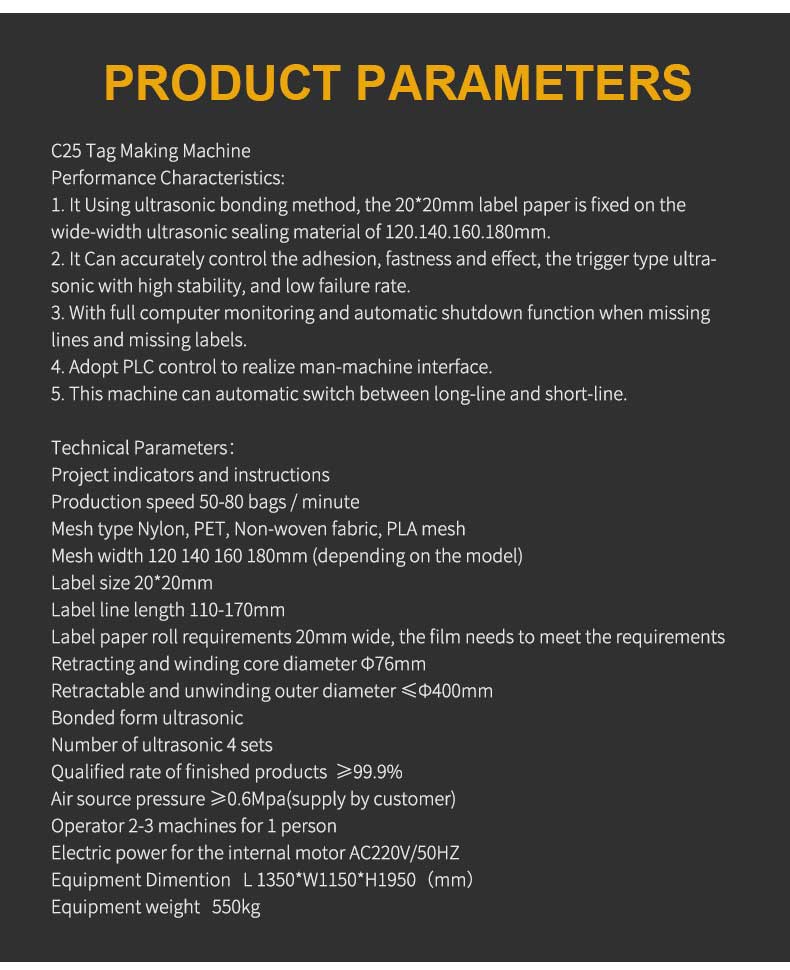

Performance Characteristics:
1. It Using ultrasonic bonding method, the 20*20mm label paper is fixed on the wide-width ultrasonic sealing material of 120.140.160.180mm.
2. It Can accurately control the adhesion, fastness and effect, the trigger type ultrasonic with high stability, and low failure rate.
3. With full computer monitoring and automatic shutdown function when missing lines and missing labels.
4. Adopt PLC control to realize man-machine interface.
5. This machine can automatic switch between long-line and short-line.

Technical Parameters：
Project indicators and instructions
Production speed 50-80 bags / minute
Mesh type Nylon, PET, Non-woven fabric, PLA mesh
Mesh width 120 140 160 180mm (depending on the model)
Label size 20*20mm
Label line length 110-170mm
Label paper roll requirements 20mm wide, the film needs to meet the requirements
Retracting and winding core diameter Φ76mm
Retractable and unwinding outer diameter ≤Φ400mm
Bonded form ultrasonic
Number of ultrasonic 4 sets
Qualified rate of finished products  ≥99.9%
Air source pressure ≥0.6Mpa(supply by customer)
Operator 2-3 machines for 1 person
Electric power for the internal motor AC220V/50HZ
Equipment Dimention   L 1350*W1150*H1950（mm）
Equipment weight   550kg
